Hardware - Pedestrian Turnstile
WiiCON Makes Pedestrian Flow Effortless and Effective
Optimising entrance, exit, and turnstile operations for secure, seamless pedestrian access with minimal wait times, enhancing security and user experience.
  • Fast, accurate credential validation
  • Automated access control
  • Real-time monitoring & alarms
  • Avaiable for any customization
Enhance Pedestrian Experience

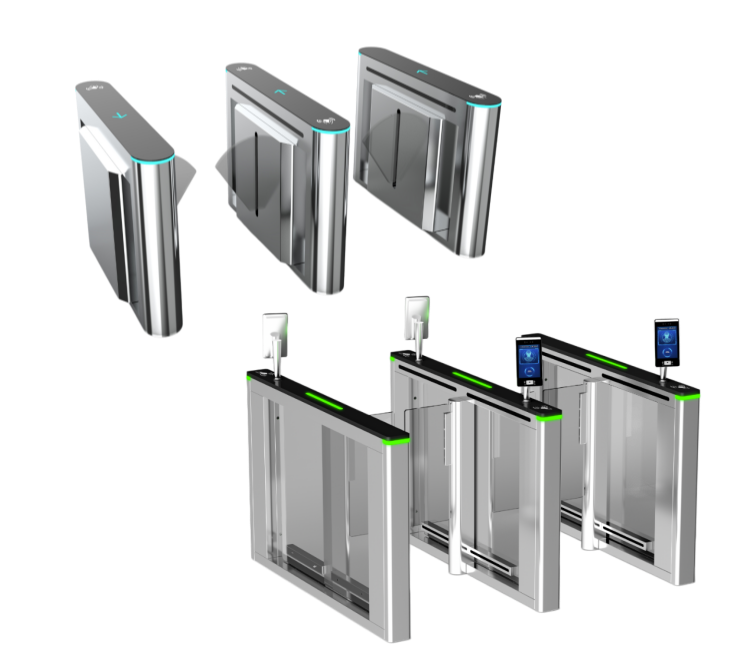

Pedestrian Turnstile
The System
Protects Authorized Pedestrian with Seamless Access.
Flap Turnstile

Quiet, reliable flap gate with intelligent anti‑tailgating. Continuous passage mode for peak traffic. Fail‑safe open on power loss. Easily integrates with face recognitioan, card or QR readers.

Swing Turnstile

Premium swing gate for high‑security sites. Smooth servo drive, superior tailgating detection, anti‑crash locking, and crush protection. Works with any access system.

Smart Swing Turnstile

Sleek, space‑saving turnstile for offices, hospitals, and plazas. Durable motor, precise tailgating detection, wide lane option. Manual push‑open on power failure. Rain‑tested.

Request A Demo
Key Features

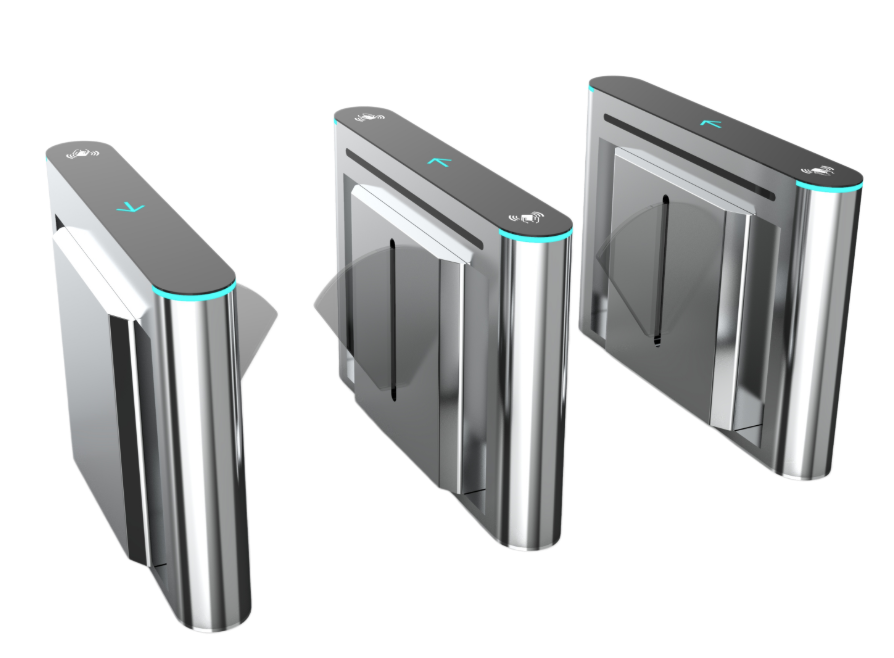

Flap Turnstile
Efficient, secure, and fast pedestrian flow access
Flap Turnstile
Quiet & Reliable Motor
DC brushless motor delivers stable, no-arc operation with a lifespan exceeding 5 million cycles.
High-Precision Anti-Tailgating
6 to 12 pairs of infrared sensors detect unauthorized following within 200mm, triggering instant alarms.
Flexible Operation Modes
Supports bi-directional authorized, one-way authorized, or free passage – configurable by site needs.
Auto-Reset & Timeout Cancellation
Automatically cancels access if the user does not pass within the preset time, preventing misuse.
Continuous Peak Flow
Stays open for multiple valid users in a row; closes only after the last authorized person clears the passage.
Emergency & Fail-Safe Mode
On fire alarm, flaps hold open for evacuation. On power failure, they remain open – fully compliant with safety codes.

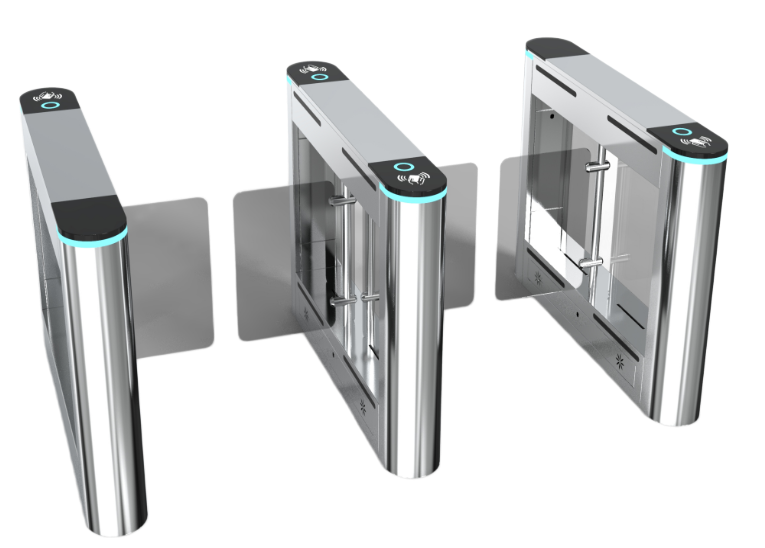

Smart Swing Turnstile
Aesthetic, space-saving
Smart Swing Turnstile
Compact & Stylish Design
Black high-density acrylic top cover with optional blue ambient light – blends with modern architecture.
Wide Passage Flexibility
Acrylic arm supports 600850mm; stainless steel arm supports up to 1000mm – suitable for wheelchair access.
Continuous High Throughput
Remains open for consecutive authorized users (2045 persons/minute), closing only after the last valid passage.
Fail-Safe Free-Swing Mode
On power failure, the barrier arm can be manually pushed open – creating an immediate evacuation path.
Anti-Crash & Anti-Crush
Locks on forced impact without a signal; releases on contact with a person or object.
Outdoor Ready
Rain-tested and sealed for reliable performance in outdoor parking and facility entrances.

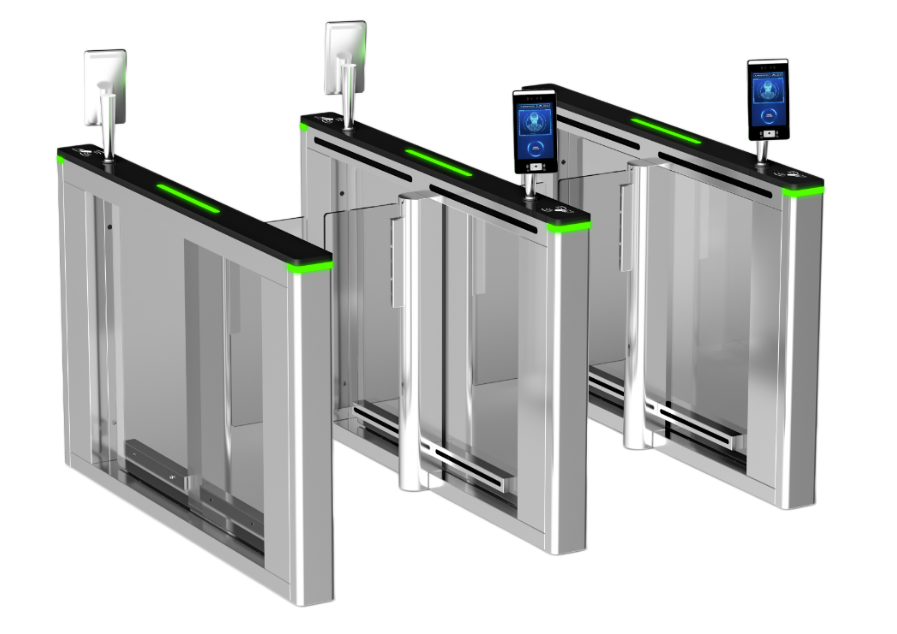

Swing Turnstile
High-security, ultra-durable pedestrian access
Swing Turnstile
Servo Motor Precision
DC brushless servo motor ensures smooth, silent operation with >10 million cycle life.
Intelligent Anti-Tailgating Logic
Distinguishes between a single user, a valid group, and an unauthorised follower – alarms on violation.
Anti-Crash Locking Mechanism
Electromechanical lock automatically engages when the wing is impacted without a valid signal.
Continuous Passage Mode
Supports up to 60 persons per minute – ideal for rushhour entry at offices and transit hubs.
Fail-Safe & Emergency Open
On power loss, wings become free-swinging. On fire signal, they hold open for full evacuation.
Why Choose WiiCON
Secure Your Entrance. Enhance Pedestrian Flow Efficiency.
Effortless Access Management
User-Friendly Experience
Real-Time Security Monitoring
Future-Ready Flexibility
Environmentally Conscious

Seamlessly integrate with any access control system – face, card, QR, or fingerprint – for hands-free operation.

Ultra-fast release speed and clear audible/visual guidance to reduce wait times and confusion.

Instant alarm for tailgating, illegal entry, and equipment faults ensure immediate response.

Modular design allows easy expansion, mode changes, and upgrades as your security needs grow.

Low standby power and durable components reduce energy use and replacement waste.
